Soraa AC-GE-1060-00-S1 SORAA SNAP 2 inch diameter Linear Beam Spreader 10° X 60°

Product Description

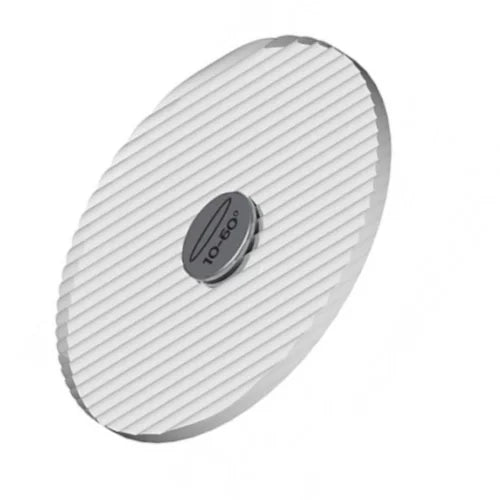

The Soraa SNAP 2-inch Linear Beam Spreader 10° x 60° reshapes a narrow-spot Soraa beam into an asymmetric linear pattern, ideal for wall washes and illuminating long or asymmetric objects. By spreading the beam into a 10° x 60° elongated footprint, it reduces the number of light fixtures required to cover a given run and limits spill onto adjacent surfaces. With 90% lumen transmissivity, the lens preserves nearly all of the lamp's output. The 50 mm diameter, 2 mm-thick lens snaps onto any narrow-spot Soraa lamp via the self-centering magnetic interconnect with a 0.45 lb-F holding force, and stacks with other SNAP accessories for layered beam control.

About This Item

• LINEAR 10° X 60° BEAM — Reshapes a narrow-spot Soraa beam into a 10° x 60° elongated linear pattern, ideal for wall washes, signage, and asymmetric targets that a circular beam would over- or under-cover.
• FEWER FIXTURES NEEDED — Spreading the beam linearly reduces the number of light fixtures required to cover a wall, art row, or display run, lowering both fixture and labor costs on a job.
• CONTROLLED SPILL — Limits spill illumination onto adjacent surfaces, keeping the wash on the target object and out of unwanted ceiling, floor, or doorway areas.
• 90% LUMEN TRANSMISSIVITY — Passes 90% of the lamp's lumens through the lens, so beam reshaping does not cost meaningful output.

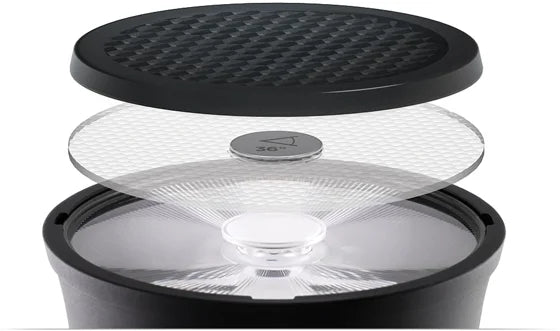

• MAGNETIC SNAP ATTACHMENT — Self-centering magnetic interconnect snaps onto any narrow-spot Soraa lamp with a 0.45 lb-F holding force — no clips, no tools, no field modifications required.
• LOW-PROFILE 2 MM BUILD — Just 2 mm thick at 50 mm diameter — sized for the 2-inch SNAP optical platform without adding visible bulk to recessed cans or track heads.

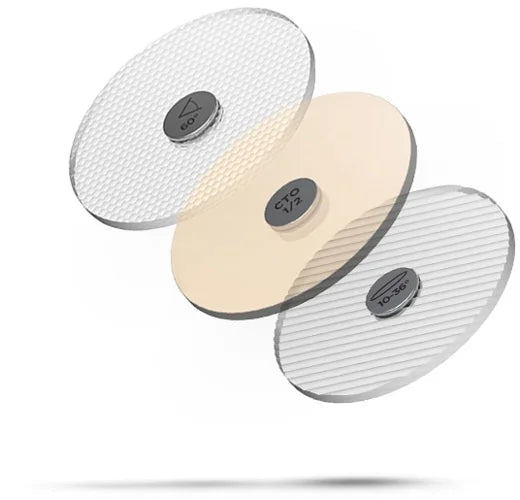

• STACKABLE WITH OTHER SNAPS — Combine with louvers, color filters, or CCT-shifting SNAP accessories for layered beam control; place CCT shifters on the lamp first for best results.
